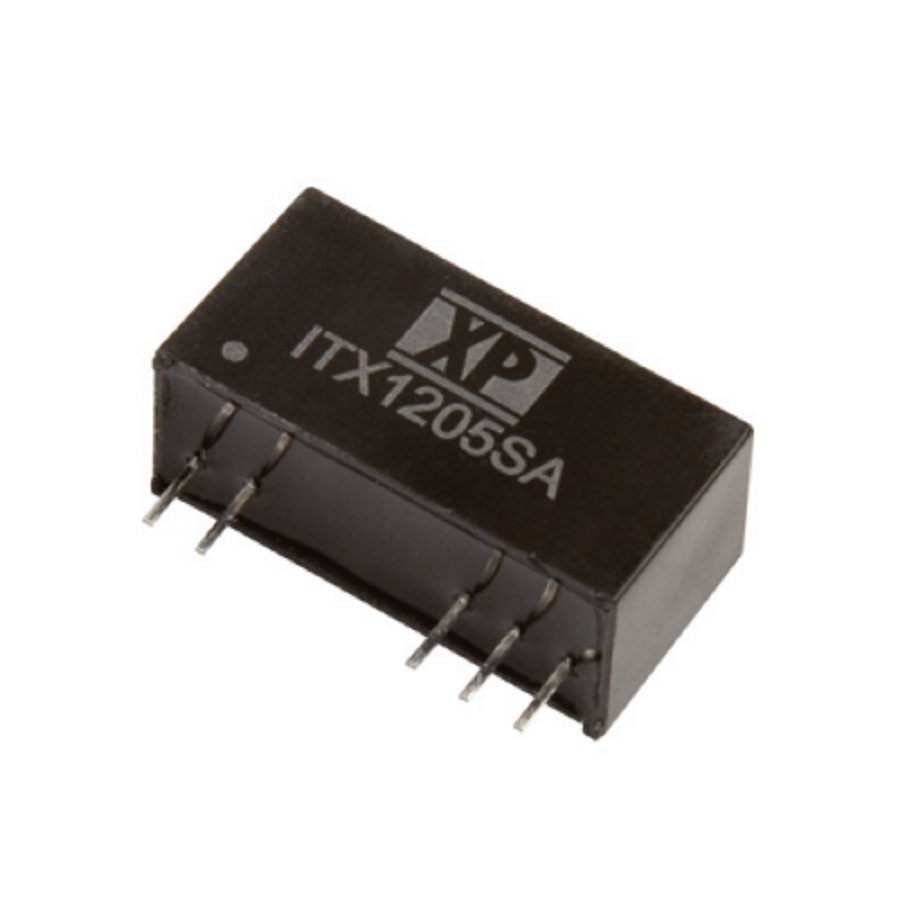

ITX0505SA
Manufacturer:
XP Power
Mfr.Part #:
ITX0505SA
Datasheet:
Description:
DC to DC Converters SIP-8 Module, 7 Leads Through Hole Min Input Voltage:4.5 V Max Input Voltage:9 V 81 %
| Parameter | Value |
|---|---|
| Length | 21.844 mm |
| Width | 9.144 mm |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -40 °C |
| Height | 11.176 mm |
| Packaging | Tube |
| Depth | 21.85 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Features | SCP |
| Min Input Voltage | 4.5 V |
| Max Power Dissipation | 6 W |
| Max Output Current | 1.2 A |
| Max Input Voltage | 9 V |
| Number of Outputs | 1 |
| Isolation Voltage | 1 kV |
| Output Power | 6 W |
| Current - Output 1 | 1.2 A |
| Efficiency | 81 % |
| Voltage - Output 1 | 5 V |
| Max Input Voltage (DC) | 9 V |
| Nominal Output Voltage | 5 V |
| Max Output Power | 6 W |
| Min Input Voltage (DC) | 4.5 V |
| Output Voltage-Channel 1 | 5 V |
Stock: 959
Distributors
pcbx
pcbxUnit Price$11.93421
Ext.Price$11.93421
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $11.93421 | $11.93421 |
| 10 | $11.21652 | $112.16520 |
| 25 | $10.74318 | $268.57950 |
| 50 | $10.37798 | $518.89900 |
| 100 | $10.02524 | $1002.52400 |
